Home /Products/Mobile Truck Crane/TRUCK CRANE mobile crane for sale XCT100 100 ton crane for sale

TRUCK CRANE mobile crane for sale XCT100 100 ton crane for sale

1 Unit
MOQ
$102,000.00(1 - 1 Units) $52,000.00(>=2 Units)
Price
TRUCK CRANE mobile crane for sale XCT100 100 ton crane for sale
Features Gallery Product Description Request A Quote
Features
Specifications
Feature: TRUCK CRANE
Showroom Location: Egypt, Canada, Turkey, United Kingdom, Italy, France, Viet Nam, Philippines, Brazil, Peru, Saudi Arabia, Indonesia, Pakistan, India, Mexico, Russia, Spain, Thailand, Morocco, Kenya, Argentina, South Korea, Chile, UAE, Colombia, Algeria, Sri Lanka, Romania,
Condition: New
Application: Construction Lift
Rated Loading Capacity: 100 Ton
Rated Lifting Moment: 3528 KN.m
Max. Lifting Height: 82m
Span: 7.95m*7.9m
Warranty: 1 Year
Hydraulic Cylinder Brand: Truck Crane
Hydraulic Pump Brand: Truck Crane
Hydraulic Valve Brand: Truck Crane
Engine Brand: Truck Crane
UNIQUE SELLING POINT: Cheap Truck Crane
Machinery Test Report: Provided
Video Outgoing-inspection: Provided
Marketing Type: Ordinary Product
Warranty Of Core Components: 1 Year
Core Components: Pressure Vessel, Motor, Bearing, Gear, Pump, Gearbox, Engine, PLC, Other
Weight (KG): 480000 Kg
Dimension: 15600x3000x3870mm
Engine: Weichai
Basic Infomation
Payment & Shipping Terms
Product Description
Products Description

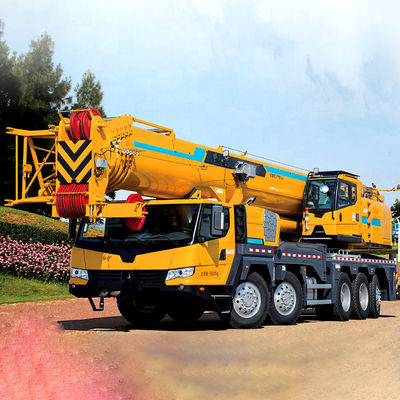

X XCT100 100 ton construction crane

X XCT100 100 ton construction crane is widely used for the lifting operations in general engineering projects, such as
construction site, urban renewal, communication and transportation, ports, bridge, oilfields and mine, and complex working environments.

* 6-section boom of 64 m with U-type profile is adopted; the max. lifting load is 100 t; the max. lifting height is 92.6 m; the
max. working radius is 62 m; The performance takes the lead comprehensively.

* Low speed large torque power transmission system, contributes to perfect combination of optimal power and optimal economical efficiency, leading to more than 12% reduction in fuel consumption and 10% improvement in grade ability.

* XCT100 construction crane is also the first four-wheel driven truck crane which can meet the need under various road
conditions.Chassis rear hydraulic controlled follow-up steering technology, realizate highway and small turning two steering modes, ensure stable and reliable of vehicle at high speed, travelling at lower speed is flexible.
Product Paramenters
Description
Unit
Parameter value
Overall length
mm
15600
Overall width
mm
3000
Overall Height
mm
3870
Wheel Base
mm
1920+3500+1420+1505
Track(front/rear)
mm
2449/2315
Front/Rear overhang
mm
2650/2765
Front/Rear extension
mm
1840/0
Total vehicle mass in travel configuration
kg
55000
1st and 2nd Axle load
kg
10000
3rd and 4th Axle load
13000
5th Axle load
9000
Engine Model
WP6G240E330
M906LA.E3A/2
WP12.430N
Engine rated power
kw/(r/min)
176/2300
190/2200
316/1900
Engine rated torque
N.m/(r/min)
860/1200-1700
1000/1200-1600
2060/1000-1400
Max. travel speed
km/h
90
Min. turning diameter
m
23
Min. ground clearance
mm
326
Max. grade ability
%
45
Approach angle
°
18
Departure angle
°
13
Braking distance (at 30 km/h, full load )
m
≤10
Oil consumption per 100km
L
70
Noise level at seated position
dB(A)
≤90
Exterior noise level
dB(A)
≤88
Details Images
