Home /Products/Mobile Truck Crane/TRUCK CRANE crane for sale 70 ton mobile crane QY70KC price cranes

TRUCK CRANE crane for sale 70 ton mobile crane QY70KC price cranes

1 Unit
MOQ
$220,000.00(1 - 1 Units) $120,000.00(>=2 Units)
Price
TRUCK CRANE crane for sale 70 ton mobile crane QY70KC price cranes
Features Gallery Product Description Request A Quote
Features
Specifications
Feature: TRUCK CRANE
Showroom Location: Egypt, Canada, Turkey, United Kingdom, Italy, France, Viet Nam, Philippines, Brazil, Peru, Saudi Arabia, Indonesia, Pakistan, India, Mexico, Russia, Spain, Thailand, Morocco, Kenya, Argentina, South Korea, Chile, UAE, Colombia, Algeria, Sri Lanka, Romania,
Condition: New
Application: Construction Lift
Rated Loading Capacity: 70 Ton
Rated Lifting Moment: 2812 KN.m
Max. Lifting Height: 64.5m
Span: 6.545x7.9(5.6)m
Warranty: 1 Year
Hydraulic Cylinder Brand: Truck Crane
Hydraulic Pump Brand: Truck Crane
Hydraulic Valve Brand: Truck Crane
Engine Brand: Truck Crane
UNIQUE SELLING POINT: Cheap Truck Crane
Machinery Test Report: Provided
Video Outgoing-inspection: Provided
Marketing Type: Ordinary Product
Warranty Of Core Components: 1 Year
Core Components: Pressure Vessel, Motor, Bearing, Gear, Pump, Gearbox, Engine, PLC, Other
Weight (KG): 44800 Kg
Dimension: 14700x2790x3820mm
Engine: D10.38-50
After Warranty Service: Video Technical Support, No Service, Online Support, Spare Parts, Field Maintenance And Repair Service
Local Service Location: Egypt, Canada, Turkey, Italy, France, Germany, Viet Nam, Philippines, Brazil, Peru, Saudi Arabia, Indonesia, Pakistan, India, Mexico, Russia, Spain, Thailand, Japan, Malaysia, Australia, Morocco, Kenya, Argentina, South Korea, Chile, UAE, Colombia, Algeria
After-sales Service Provided: Field Installation, Commissioning And Training, Field Maintenance And Repair Service, Video Technical Support, Online Support, Free Spare Parts
Applicable Industries: Hotels, Garment Shops, Building Material Shops, Machinery Repair Shops, Manufacturing Plant, Food & Beverage Factory, Farms, Restaurant, Home Use, Retail, Food Shop, Printing Shops, Construction Works , Energy & Mining, Food & Bevera
Certification: ISO
Basic Infomation
Certification: ISO
Payment & Shipping Terms
Product Description
Products Description

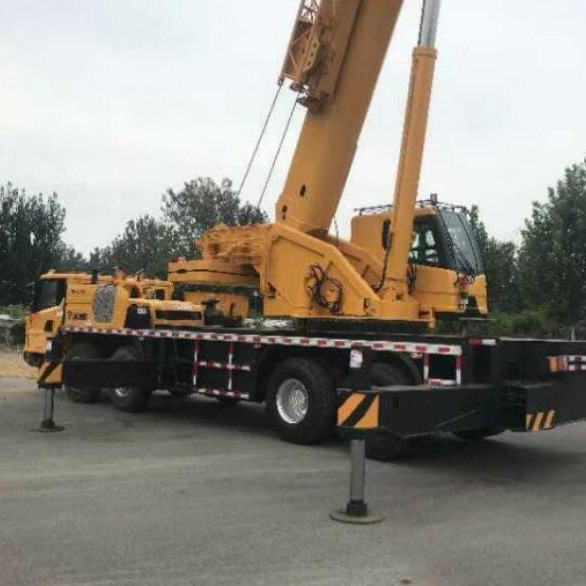

X 70 ton crane QY70KC

X 70 ton Truck crane QY70KC is widely used for the lifting operations in general engineering projects, such as construction
site, urban renewal, communication and transportation, ports, bridge, oilfields and mine, and complex working environments.

* 48 m super boom, stronger performance in high-frequent use working conditions
Five-section boom of 48 m has the lifting performance of 8% over the cranes in its class and 10-15% higher when the boom is partially and fully extended and used frequently.

* Optimal power transmission system
Off-road specialized four-axle G-class chassis with low speed large torque power transmission system equipped, features higher climbing capacity at lower speeds and job site transfer capacity at higher speeds, i.e. maximum grade ability 41% and a maximum travel speed of 90 km/h.

* Exclusive control technology of simultaneous movements, more efficient
G1 generation double-variable pump along with after-valve compensation load-sensitive system contributes to fine control of lifting operation, smooth operation and industry-leading working efficiency, leading to economical, efficient and precise control.

* High grade electrical protection, more reliable operation
Improved electrical system reliability: waterproof and dustproof inserts, high temperature-resistant corrugated pipes, special wire harness closure sleeves and rubber sleeves are used, excellent dust protection, protection level up to IP67.
Product Paramenters
Category
Item
Unit
Parameter
Dimensions
Outline size（lengthxwidthxheight）
m
14700x2790x3820
Wheel base
m
1470+4500+1350
Track（Front/ Rear）
m
2353/2325
Front/ Rear overhang
mm
2380/2450
Front/ Rear extension
mm
2045/505
Weight
Total vehicle mass in travel configuration
kg
44800
Axle load
1st axle
kg
9450
2nd axle
kg
9450
3rd axle
kg
12950
4th axle
kg
12950
Power
Engine model
D10.38-50
Engine rated power/rpm
kW/(r/min)
276/1900
Max. net power/rpm
kW/(r/min)
274/1900
Engine rated torque/rpm
N.m/(r/min)
1560/1200-1500
Travel
Max. travel speed
km/h
≥90
Min. travel speed
km/h
1.7～3
Min. turning diameter
m
≤24
Min. turning diameter at boom tip
m
≤25.2
Min. ground clearance
mm
307
Approach angle
°
19
Departure angle
°
13
Braking distance (at 30 km/h )
m
≤10
Max. grade ability
%
41
Fuel consumption per 100 km
L
43
Main performance
Max. total rated lifting capacity
t
70
Min. rated working radius
m
3
Turning radius at turntable tail
Counterweight
mm
4350
Auxiliary winch
mm
4545
Max. load moment
Base boom
kN.m
2812
Fully-extended boom
kN.m
1622
Fully-extended boom + Jib
kN.m
554
Outrigger span
Longitudinal
m
6.545
Lateral
m
7.9(5.6)
Hoist height
Base boom
m
12.7
Fully-extended boom
m
48.5
Fully-extended boom + Jib
m
64.5
Boom length
Base boom
m
12.4
Fully-extended boom
m
48
Fully-extended boom + Jib
m
64
Details Images
