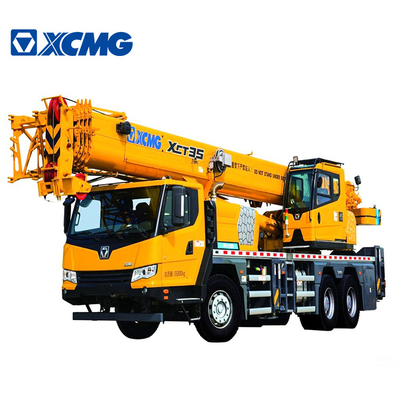

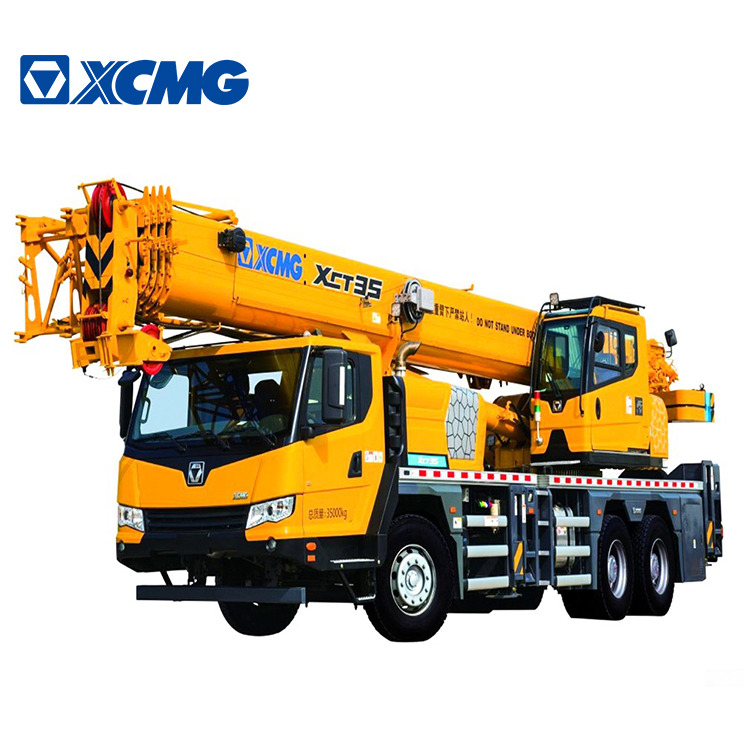

Model Number:XCT35
Brand Name:XCMG
Place of Origin:China
Span:7.6m
Max. Lifting Height:40.6m
Max. Lifting Load:35t
Application:Construction Industry
Certification:ISO9001/CE
Details
Product Name:XCT35
Display online time:2018-11-21
weight:35000.000kg
After-sales Service Provided:Engineers available to service machinery overseas
Warranty:12 Months
Condition:NEW
Moving Type:wheel
Overall length:13065mm
Overall width:2750mm
Overall height:3540mm
Total weight in travel:35000kg
Engine Model:SC9DF300.2Q5
Engine rated power:221kW/1900rpm
Engine rated torque:1400Nm/1400rpm
Driving speed(km/h):3~90
Gradability:0.42
Min. turning diameter:22m
Min. ground clearance:260mm
Tires:445/95R25(16.00R25),525/80R25(20.5R25)
Base boom:10.9m
Max. main boom:42m
Parameter
|
Category |
Item |
Unit |
Parameter |
||
|
Main performance |
Max. total rated lifting capacity |
t |
35 |
||
|
Min. rated working radius |
m |
3 |
|||
|
Turning radius at turntable tail |
Counterweight |
mm |
3600 |
||
|
Auxiliary winch |
mm |
3518 |
|||
|
Max. load moment |
Base boom |
kN.m |
1458 |
||
|
Fully-extended boom |
kN.m |
864 |
|||
|
Outrigger span (fully- extended) |
Longitudinal |
m |
5.975 |
||
|
Lateral |
m |
7 |
|||
|
Hoist height |
Base boom |
m |
10.1 |
||
|
Fully-extended boom |
m |
41 |
|||
|
Fully-extended boom + Jib |
m |
56.8 |
|||
|
Boom length |
Base boom |
m |
10.9 |
||
|
Fully-extended boom |
m |
42 |
|||
|
Fully-extended boom + Jib |
m |
58 |
|||
|
Jib offset angle |
° |
0,15,30 |
|||
|
Working speed |
Elevating time |
Boom raising |
s |
≤40 |
|
|
Telescoping time |
Fully extended |
s |
≤80 |
||
|
Max. slewing speed |
r/min |
≥2.5 |
|||
|
Outrigger extending and retracting time |
Outrigger beam |
Extending Simultaneously |
s |
≤30 |
|
|
Retracting Simultaneously |
s |
≤20 |
|||
|
Outrigger jack |
Extending Simultaneously |
s |
≤35 |
||
|
Retracting Simultaneously |
s |
≤25 |
|||
|
Hoisting speed (single line, 4th layer) |
Main winch |
m/min |
≥130 |
||
|
Auxiliary winch |
m/min |
≥130 |
|||
|
Noise |
Exterior noise level |
dB(A) |
≤122 |
||
|
Noise level at seated position |
dB(A) |
≤90 |
|||
