Home /Products/Truck Mounted Crane/New Condition Mobile Truck Crane 25 Ton High Operating Efficiency

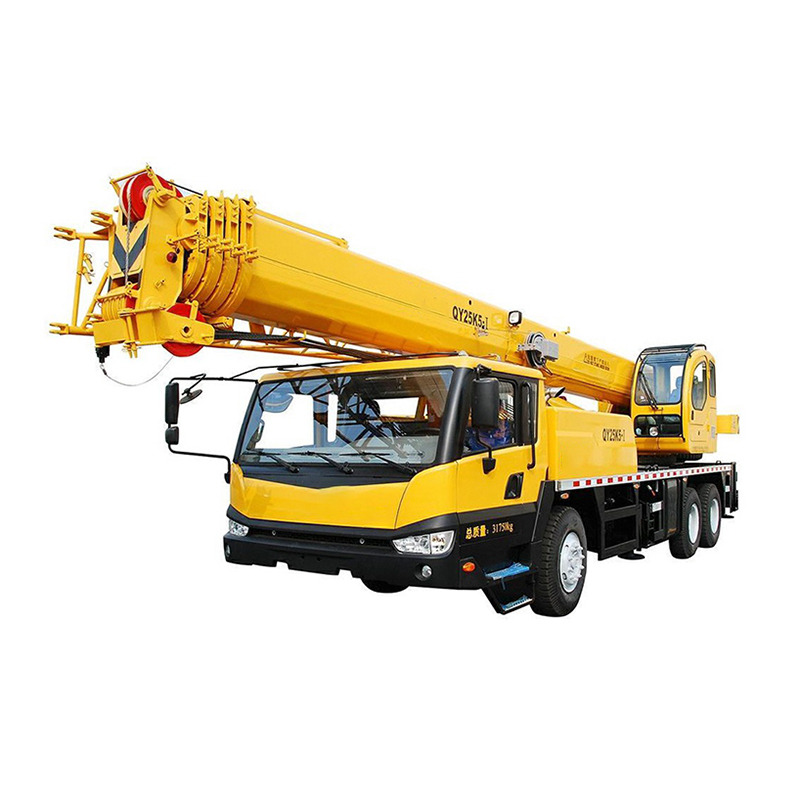

New Condition Mobile Truck Crane 25 Ton High Operating Efficiency

1 Set
MOQ
$90,000.00(1 - 4 Sets) $75,000.00(>=5 Sets)
Price
New Condition Mobile Truck Crane 25 Ton High Operating Efficiency
Features Gallery Product Description Request A Quote
Features
Specifications
Feature: TRUCK CRANE
Showroom Location: Thailand, UAE, Algeria, Sri Lanka, South Africa, Kazakhstan
Condition: New
Application: Construction
Rated Loading Capacity: 25 Ton
Max. Lifting Height: 47.8M
Warranty: 1 Year, 1 Year
Hydraulic Cylinder Brand: Kawasaki
Hydraulic Pump Brand: Kawasaki
Hydraulic Valve Brand: Kawasaki
Engine Brand: WEICHAI
UNIQUE SELLING POINT: High Operating Efficiency
Machinery Test Report: Provided
Video Outgoing-inspection: Provided
Marketing Type: New Product 2020
Warranty Of Core Components: 1 Year
Core Components: Pressure Vessel, Motor, Bearing, Gearbox, Engine
Weight (KG): 25000 Kg
Product Name: Truck Crane
Crane Type: QY25K5-I
Max. Total Rated Lifting Capacity: 25 Tons
Engine Model: SC8DK280Q3
Outline Dimension: 12300*2500*3350MM
Total Weight In Travel: 31750KG
Max. Travel Speed: 75km/h
Fully Extended Boom + Jib: 47.8M
Min. Rated Working Radius: 3m
Basic Infomation
Model Number: SC8DK280Q3
Payment & Shipping Terms
Packaging Details: nude package
Supply Ability: 100 Set/Sets per Month
Product Description
Best-Selling 25 Tons Crane Truck Mounted Truck Crane QY25K5-I
• Leading performance: the boom length in full extension is 39.5m, the performance leading in 5%. The grade ability is 40%, which make the machine have good road adaptability.
• The unique U boom and plug-in boom head make the load-carrying capacity more balanced, and lift more smoothly.
• The unique stretch and retract technique prevents the misoperation; the stretch and retract of the boom is safer and more reliable.
• The control system is optimized by 8 patents; lifting, rotation, and luffing are easy and reliable.
• Six unique technologies supply the quality assurance, and make the products keep a high value.
Dimension
QY25K5-I
Outline dimension
12300*2500*3350MM
Total weight in travel
31750kg
Front axle load
6550kg
Rear axle load
25200kg
Engine model
SC8DK280Q3 /WD615.329
Engine rated power
206/2200 213/2200 kW/(r/min)
Engine rated torque
1122/1400 1160/1400 N.m/(r/min)
Max. travel speed
80 km/h
Min. turning diameter
22m
Min. ground clearance
260mm
Approach angle
16°
Departure angle
13°
Max. grade ability
40%
Max. rated total lifting capacity
25t
Fuel consumption for 100km
37L
