XCMG Official XCT25L5 25 ton hydraulic boom arm mobile truck crane made in China

1 Unit
MOQ
$150,000.00(1 - 4 Units) $100,000.00(>=5 Units)
Price
XCMG Official XCT25L5 25 ton hydraulic boom arm mobile truck crane made in China
Features Gallery Product Description Request A Quote
Features
Specifications
Feature: TRUCK CRANE
Showroom Location: Canada, United States, Germany, India, Russia, Kazakhstan, Nigeria, Uzbekistan, Japan
Condition: New
Application: Construction
Rated Loading Capacity: 25t
Rated Lifting Moment: 900kN.m
Max. Lifting Height: 50.2m
Span: 7.9m
Warranty: 1 Year
Hydraulic Cylinder Brand: Top Brand
Hydraulic Pump Brand: Top Brand
Hydraulic Valve Brand: Top Brand
Engine Brand: Top Brand
UNIQUE SELLING POINT: Long Lifetime
Machinery Test Report: Provided
Video Outgoing-inspection: Provided
Marketing Type: Hot Product 2019
Warranty Of Core Components: 1 Year
Core Components: Pressure Vessel, Motor, Bearing, Gear, Pump, Gearbox, Engine, PLC
Applicable Industries: Construction Works
After Warranty Service: Video Technical Support, Online Support, Spare Parts, Field Maintenance And Repair Service
Local Service Location: Egypt, Canada, Turkey, United Kingdom, Italy, France, Germany, Viet Nam, Philippines, Brazil, Peru, Saudi Arabia, Indonesia, Pakistan, India, Mexico, Russia, Spain, Thailand, Japan, Malaysia, Australia, Morocco, Kenya, Argentina, South Korea, Chile, UAE, C
After-sales Service Provided: Field Installation, Commissioning And Training, Field Maintenance And Repair Service, Video Technical Support, Online Support, Free Spare Parts
Certification: CE/ISO9001
Basic Infomation
Certification: CE/ISO9001
Payment & Shipping Terms
Supply Ability: 10000 Unit/Units per Year
Product Description
Products Description

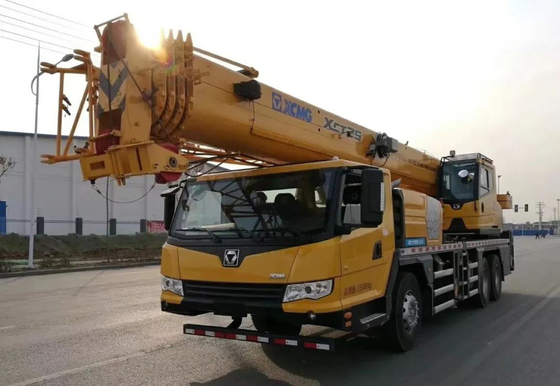

XCMG Official XCT25L5 25 ton hydraulic boom arm mobile truck crane.
XCT25L5 Truck crane is widely used for the lifting operations in general engineering projects, such as construction site, urban renewal, communication and transportation, ports, bridge, oilfields and mine, and complex working environments. 1. Super lifting performance * 5-section boom of 42 m with U-type profile is adopted; the max. lifting load is 25 t; the max. lifting height is 50.2 m; the max. working radius is 38.5 m; The performance takes the lead comprehensively. * Innovative single-plate boom head and compact boom tail structure, best overlapping ratio in its class and stronger boom load-bearing capacity. 2. New energy-saving hydraulic system * The min. stable slewing speed is 0.1°/s. The min. stable lifting speed (drum) is 2.5m/min. Precise and safe lifting movements can be realized. * Dual-pump separate and confluent control technology brings higher compound movement performance in the industry with higher working efficiency. 3. Low-speed large-torque power drive system Resulting in perfect combination of high power performance and low fuel consumption, i.e.12% reduction in fuel consumption for driving, 15% for operation, and 15% improvement in power performance.
Specification
Dimension
Unit
XCT25L5
Overall length
mm
12870
Overall width
mm
2550
Overall height
mm
3470
Total weight in travel
kg
33000
Engine model

SC9DF290.1Q4/SC9DF290.2Q4
Engine rated power
kW/(r/min)
213/1900
Engine rated torque
N.m/(r/min)
1400/1400
Max. travel speed
km/h
90
Min. turning diameter
m
21
Min. ground clearance
mm
260
Approach angle
°
12
Departure angle
°
14
Max. grade ability
%
45
Fuel consumption for 100km
L
30
Max. rated total lifting capacity
t
25
Min. rated working radius
m
3
Turning radius at turntable tail
m
3.34
Max. lifting torque
kN.m
1132
Base boom
m
10.2
Max.main boom
m
41
Max.main boom+jib
m
50.2
