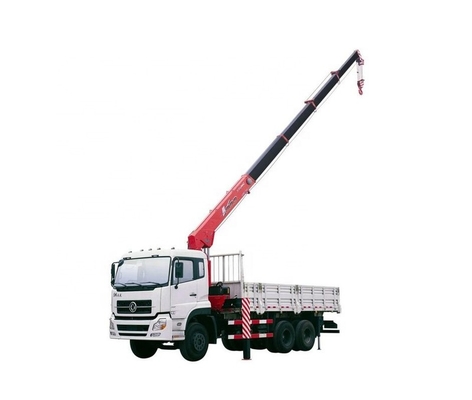

truck mounted crane manufacturer 10 ton telescopic boom truck mounted crane for sale
Features
1. The optimizing layout of the machine makes the stress of the main bearing carriers more reasonable, and the lifting performance is higher than the products with the same tonnage.
2. Optimize the stress design. Adopt the box-type outriggers which have larger span, stronger rigidity, and better stability.
3. Full hydraulic pressure drive, electrical and oil dual-purpose, safe and reliable work, high efficiency, low labor intensity;
4. Every hydraulic system equipped with balancing valve and hydraulic lock, safe and reliable performance
5. Crane jib and important components are made of high strength steel plate to reduce weight of crane and improve crane performance;
6. Rotary bearing all adopt 50 MN forging materials with quenching, tempering and carburizing treatment.
7.16 tons and above the crane main fittings adopt top quality original accessories, such as: The main valve, main pump, winding system and rotation system, slewing bearing
8. Boom of cold forming, rectangular, five prismatic structure, give full play to the mechanical properties of the material.
9. Adopts hydraulic cylinder telescopic crane boom, work more safety and reliable
10. Equipped with night light, expanded the work time.
Telescopic crane boom using marker and alarm limit of double insurance.
11. Crane display options torque, height limiter.
12. Cranes are equipped with the radiator, more conducive to the summer job;
13. Environmental, energy-saving and powerful engine offers strong drive for the crane carrier and improves travel performance for the whole machine.
14. Hydraulic oil line rubber hose all adopt double wire super high pressure oil pipe, steel pipe are all seamless pipes.
Technical parameter of truck mounted crane
|
I.Main specifications for 12tons crane truck |
|||
|
Total weight(Kg) |
20490 |
Driving type |
6 x 4 |
|
Payload (Kg) |
7295 |
Overall dimension (mm) |
10050*2480*3800 |
|
Curb weight(Kg) |
13195 |
Box internal dimension(mm) |
6500*2294*550 |
|
cab seats (man) |
3 |
Front/Rear Suspension(mm) |
1245/3500 |
|
Approach/departure angle (°) |
32/10 |
Wheelbase(mm) |
4350+1300 |
|
Number of axles |
3 |
Max speed(Km/h) |
102 |
|
Axle load(Kg) |
6000/14200 |
Tire specification |
11R22.5, 11 pieces |
|
Engine |
210hp |
Gearbox |
10 forwards & 2 reverse |
|
II.Crane specification |
|||
|
Crane model |
SQ10SK3Q |
Crane brand |
“XCMG” |
|
Crane weight(kg) |
3765 |
Max lifting weight(kg) |
10000 |
|
Max. Lifting moment(T.M) |
25 |
Recommended power(kw) |
30 |
|
Max. Oil Flow of Hydraulic System(L/min) |
63 |
||
|
Max. Pressure of Hydraulic System(MPA) |
26 |
||
|
Oil Tank Capacity(L) |
160 |
||
|
Installation Space(mm) |
1150 |
||
Xiagong Chusheng truck mounted crane advantage
Xiagong Chusheng has a perfect service system, including pre-sale service, in-sale service and after-sale service. To provide high quality service for our customers, we train every salesman with necessary product maintenance knowledge and organized a Technology Supporting Department with a group of excellent and professional engineers. Any problem you can contact us at any time you like.
Pre-sale service:
1. Reply enquiries in 24 hours.
2. Market research and forecast for customer.
3. Provide unique and professional solutions based on customer's requirement.
4. Data sheet and samples offer.
5. Other services, such as special packing design, factory visiting and so on.
In-sale service:
1. Tracking report in producing.
2. Quality test report for every order.
3. Photos and videos as per customer's requirement.
4. Free spare parts.
After-sale service:
1. Lifetime free maintenance and upgrade.
2. Complaint respond period not exceed 24 hours; maintenance guidance and problem solution supplied in 48 hours.
3. Customer satisfaction tracking report.
4. Free technician training.
5. Full set of documents free of charge, which including installation guidance, software operation manual, easy maintenance manual and control system software CD and so on.
6. Special service for big project, such as stadium, exhibitions, squares and so on.
