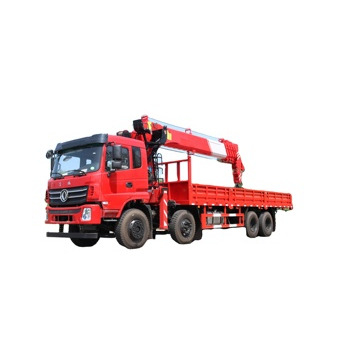

16 ton straight boom Crane information | Crane Specification | |||||
1 | Crane Brand | Chang xing | Remarks: 14 ton, 16 ton, optional , colors optional | |||
2 | Arms sections | 5 | 5 | |||
3 | Max lifting capacity(kg) | 1600kg (2.5m) | 1400kg (2.5m) | |||
4 | Max. Lifting moment | 40 ton.m | 35 ton. m | |||
5 | Working radius(m) | 19m | 18m | |||
6 | Max lifting height(m) | 21.6m | 20.1m | |||
7 | Crane weight(kg) | 5550kg | 6200kg | |||
8 | Operation pressure | 31mpa | 31mpa | |||
9 | span(m) | 5.8m | 5.2m | |||
10 | Rotation angle | 360 full rotation | 360 full rotation | |||
Chassis information | ||||||||
Item | Data | Item | Data | |||||
1 | Applicable crane | 14/16 ton | Max Speed | 88km/h | ||||
2 | Chassis Brand | Dongfeng | Axles | 4 | ||||
3 | Rated loading weight | 10070/10005KG | Cab | 2/3 person | ||||
4 | Curb weight | 20800/19900 kg | Engine Brand | Yu chai, Kang ming si | ||||
5 | Dimensions | 1060/120 x 250/255x 388/378 cm | Emission Standard | Euro 3/4/5 | ||||
6 | Cargo body dimension | 850/720x 270/250/240 x65/55 cm | Horse Power | 295/310hp | ||||
7 | Wheelbase | 18500+3200+1350cm, 2150+4400+1350 cm | Emissions | 6800/6700ml | ||||
8 | Drive type | 8x4 | Chassis Brand | Dongfeng / Shac Man / Faw / Howo /camc optional | ||||
