Home /Products/Flatbed Truck Crane/TRUCK CRANE SINOTRUCKHOMAN 5 Ton Telescopic Straight Boom Crane Truck Mounted Crane FACTORY SUPPLY

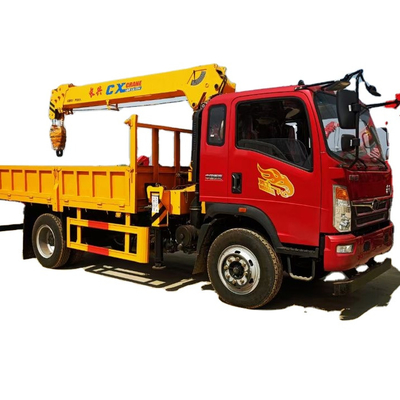

TRUCK CRANE SINOTRUCKHOMAN 5 Ton Telescopic Straight Boom Crane Truck Mounted Crane FACTORY SUPPLY

1 Set
MOQ
$38,833.00(1 - 9 Sets) $20,000.00(>=10 Sets)
Price
TRUCK CRANE SINOTRUCKHOMAN 5 Ton Telescopic Straight Boom Crane Truck Mounted Crane FACTORY SUPPLY
Features Gallery Product Description Request A Quote
Features
Specifications
Feature: TRUCK CRANE
Showroom Location: Philippines
Condition: New
Application: Lifting Machinery / Constructions
Rated Loading Capacity: 5 Ton
Rated Lifting Moment: 8ton.m/12.6ton.m/16ton.m
Max. Lifting Height: 8.4m/11.5m/12m
Span: 4.7m/5.4m/5.4m
Warranty: 1 Year
Hydraulic Cylinder Brand: Shen Bai
Hydraulic Pump Brand: Shen Bai
Hydraulic Valve Brand: Shen Bai
Engine Brand: Yuchai Kangmingsi
UNIQUE SELLING POINT: Hot Sale With Good Price
Machinery Test Report: Provided
Video Outgoing-inspection: Provided
Marketing Type: Hot Product 2019
Warranty Of Core Components: 1 Year
Core Components: Pump, Gearbox, Engine
Weight (KG): 7200 Kg
Model No.: Shenbai-CX-5TON 6.3 TON 8 TON-STRAIGHT
Max Lifting Weight: 5ton/ 8ton
Boom Type: Straight
Chassis Brand: Dong Feng
Driving Type: 4X2 LHD/RHD
Max Lifting Height: 8.4m/11.5m/12m
Engine Brand: YU CHAI / KANGMINGSI
Emission Standard: EURO4/5
Dimensions: 700X240X328cm/900X255X373cm
Max. Working Radius: 11/13.6 M
Basic Infomation
Model Number: Shenbai-CX-5TON 6.3 TON 8 TON-STRAIGHT
Payment & Shipping Terms
Packaging Details: Ro-ro shipping
Supply Ability: 1000 Set/Sets per Year
Product Description
Product Overview
Factory direct sales truck mounted crane
Inquiry us for better price
5 ton 6.3 ton straight boom crane 4 SECTIONS, CX crane
Chassis: sinotruck 4X2
Mainly used for hoisting / lifting works and engineering construction. Such as: factories, roads, bridges, buildings, rescue and so on.
PRODUCT SPECIFICATIONS
5 ton folding arms Crane information
Crane Specification
6.3 Ton
1
Crane Brand
Chang xing
Chang xing
2
Arms sections
4
4
3
Max lifting capacity(kg)
5000kg (2.5m)
6300kg (2.5m)
4
Max. Lifting moment
8 ton.m
12.6 ton. m
5
Working radius(m)
11 m
13 m
6
Max lifting height(m)
13 m
13 m
7
Crane weight(kg)
2300kg
2302kg
8
Operation pressure
24mpa
24mpa
9
span(m)
4.8m
4.8m
10
Rotation angle
360 full rotation
360 full rotation
Chassis information
Item
Data
Item
Data
1
Applicable crane
4 /6.3 ton
Max Speed
88km/h
2
Chassis Brand
Dongfeng
Axles
2
3
Rated loading weight
6505/7505Kg
Cab
2/3 person allowed
4
Curb weight
8200/7200 kg
Engine Brand
Yu chai, Kang ming si
5
Dimensions
703x240x320cm
Emission Standard
Euro 3/4/5
6
Cargo body dimension
430x230x55 cm
Horse Power
120/132 hp
7
Wheelbase
381.5cm
Emissions
2999 ml
8
Drive type
4 x 2
Chassis Brand
Isuzu / Dongfeng
PRODUCT CONFIGURATION

Hydraulic Engine

Hydraulic cylinder

Radiator

.

Multiple Valve

slewing bearing

Winch

Lifting arms
Remote controller
Span hydraulic cylinder
Products at a glance
Changxing crane mounted for trucks
Shenbai's independent R&D brand:
Changxing crane, Well know on domestic markets.
With different loading weight:
straight boom crane: 2ton, 3.5 ton, 4 ton, 5 ton, 8 ton, 10 ton, 12ton, 14ton, 16ton, 20ton.
knuckle / folding arms crane: 4 ton, 6.3 ton, 8ton, 12ton, 16ton, 20ton, 25tons, 30ton, 35ton, 40ton, 45ton, 65ton, 110 ton, at basic lifting height of 2m, and 83ton, 100ton, 130ton at lifght height of 4m.
Company Profile / About Us


Hubei Shenbai Special Automobile Co., Ltd. was established in 2013 and is located in Suizhou City, Hubei Province. It is a core enterprise of Shenbai Group and a strategic partner of Sany Palfinger. The group focuses on the research, development and manufacturing of cranes, and other special purpose vehicle.
Now we have a wider products series:truck mounted crane, flat bed tow trucks, refrigerated truck,garbage trucks and other special trucks. Shenbai now has an annual production scale of 8,000 special vehicles, and has passed IS9001-2000 international quality system certification and national 3C certification.
We're looking for longterm partnership all over the world!
CONTACT US
Our service:
1.We offer the full-series products with high level standard, of truck mounted cranes, garbage trucks, flatbed tow trucks, refrigerator trucks;

2. We can give the professional advice and offer products and shipping solutions to help customs get the right products they need with the reasonable cost.

3, We follow the whole order from offer to shipping and after-sale, all your inquiry and questions will be feedback quickly.

4, Technical support: online/video guide, and spare parts!
FAQ
1.Are you factory or trading Company?
Yes, we are factory. You're welcomed to visit our factory.
2.Could your company modify the standard product depends on my request?
Yes. Our company is specialized in researching and designing various of special purpose vehicle and spare parts. We can provide any product according to your demand.
3. Could your company totally customize products for me?
We can provide the customized-designing product meeting with any of your demand.
4. Could you provide certification that we need?
We can provide various certifications associate with truck.
5. How long could we receive our goods?
It depends on the product that you have ordered. Generally 20-30 days.
6. How about the after-sale service?
We can provide you the technical support to guide you repair your product. And we will also offer original spare parts .
