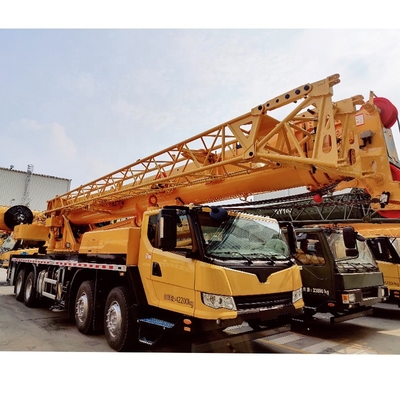

TRUCK CRANE Hot Sale Crane Machine QY50KD Brand New 50 Ton Pickup Truck Crane

1 Unit
MOQ
TRUCK CRANE Hot Sale Crane Machine QY50KD Brand New 50 Ton Pickup Truck Crane
Features Gallery Product Description Request A Quote
Features
Specifications
Feature: TRUCK CRANE
Showroom Location: Egypt, Turkey, Viet Nam, Philippines, Brazil, Peru, Saudi Arabia, Indonesia, Pakistan, India, Mexico, Russia, Spain, Thailand, Morocco, Kenya, Argentina, South Korea, Chile, UAE, Colombia, Algeria, Sri Lanka, Romania, Bangladesh, South Africa, Kazakhstan,
Condition: New
Application: Construction, Lifting, Industry
Rated Loading Capacity: 50 Ton
Rated Lifting Moment: 2009KN.M
Max. Lifting Height: 43.3m
Warranty: 1 Year
Hydraulic Cylinder Brand: Imported
Hydraulic Pump Brand: Imported
Hydraulic Valve Brand: Imported
Engine Brand: SDEC
UNIQUE SELLING POINT: High Load Moment
Machinery Test Report: Provided
Video Outgoing-inspection: Provided
Marketing Type: Ordinary Product
Warranty Of Core Components: 1 Year
Core Components: Engine, PLC
Weight (KG): 40100 Kg
Dimensions (length X Width X Height): 14045x2790x3615mm
Total Vehicle Mass: 40100kg
Engine Rated Power: 247kw/2200rpm
Max. Output Torque: 1350N.m/1100-1600rpm
Max. Travel Speed: 90km/h
Min. Turning Diameter: 24m
Min. Ground Clearance: 260mm
Approach Angle: 19degree
Fully Extended Boom+ Jib: 57.7m
Outrigger Span: 5.91*6.9m
Applicable Industries: Building Material Shops, Machinery Repair Shops, Manufacturing Plant, Construction Works , Energy & Mining
After Warranty Service: Video Technical Support, Online Support, Spare Parts, Field Maintenance And Repair Service
Local Service Location: Egypt, Turkey, Viet Nam, Philippines, Brazil, Peru, Saudi Arabia, Indonesia, Pakistan, India, Mexico, Russia, Spain, Thailand, Japan, Malaysia, Australia, Morocco, Kenya, Argentina, South Korea, Chile, UAE, Colombia, Algeria, Sri Lanka, Romania, Bangladesh
After-sales Service Provided: Field Installation, Commissioning And Training, Field Maintenance And Repair Service, Video Technical Support, Online Support
Certification: ISO9001:2008, CE
Basic Infomation
Certification: ISO9001:2008, CE
Payment & Shipping Terms
Product Description
Product Overview

Hot sale crane machine QY50KD brand new 50 ton pickup truck crane


Main configuration:
* SINOTRUK engine, D10.38-50(276kw)
* Wire rope
* Hirschmann PAT
*Heater

QY50KD is technology crystallization which our company applies for many years manufacturing experience,bases on the mature
technology.Using full cover to take the platform; using high lift balance weight, greatly improving the ease of use of the
product;classic K series appearance; full hydraulic drive, easy to operate, flexible.

OUR SERVICE:
* Warranty: We supply one year warranty for all the machines we exported, during the warranty, if there is problem caused by
machine quality without improper operation, we will supply the replace genuine parts by DHL to clients freely to keep the machine
in high efficiency work.
* Spare Parts: We have 15years experience on machine and spare parts supplying, we are efforts to supply Genuine brand spare parts
with good prices, quick response and professional service.
FEATURES AT A GLANCE






Main parameters:
Max. rated total lifting capacity: 50T
Fully extended boom:45.5M
Fully extended boom+jib:62M

Right elevation
Left elevation
Front elevation
PRODUCT SPECIFICATIONS
Dimension
Unit
QY50KA/QY50KD
Overall length
mm
13750
Overall width
mm
2800
Overall height
mm
3520
Weight
Total weight in travel
kg
41000
Front axle load
kg
15000
Rear axle load
kg
26000
Power
Engine model
WD615.334(domestic III)
Engine rated power
kW/(r/min)
247/2200
Engine rated torque
N.m/(r/min)
1350/1400
Travel
Max. travel speed
km/h
80
Min. turning diameter
m
24
Min. ground clearance
mm
291
Approach angle
°
17
Departure angle
°
11
Max. grade ability
%
40
Fuel consumption for 100km
L
45
Main performance
Max. rated total lifting capacity
t
50
Min. rated working radius
m
3
Turning radius at turntable tail
m
3.482
Max. lifting torque
kN.m
1764
Base boom
m
11.3
Fully extended boom
m
42.7
Fully extended boom+ jib
m
57.7
Longitudinal outrigger span
m
5.91
Lateral outrigger span
m
6.9
Working speed
Boom luffing time
s
88
Boom full extension time
s
180
Max. swing speed
r/min
≥2.0
Max. speed of main winch (single rope) (no load)
m/min
≥110
Max. speed of aux. winch (single rope) (no load)
m/min
≥110
PRODUCT CONFIGURATION
SDEC high power engine
Imported EATON control valve
Japan Shimadzu hydraulic motor
Successful Project
Crane Overview
Crane Overview
Crane Overview
