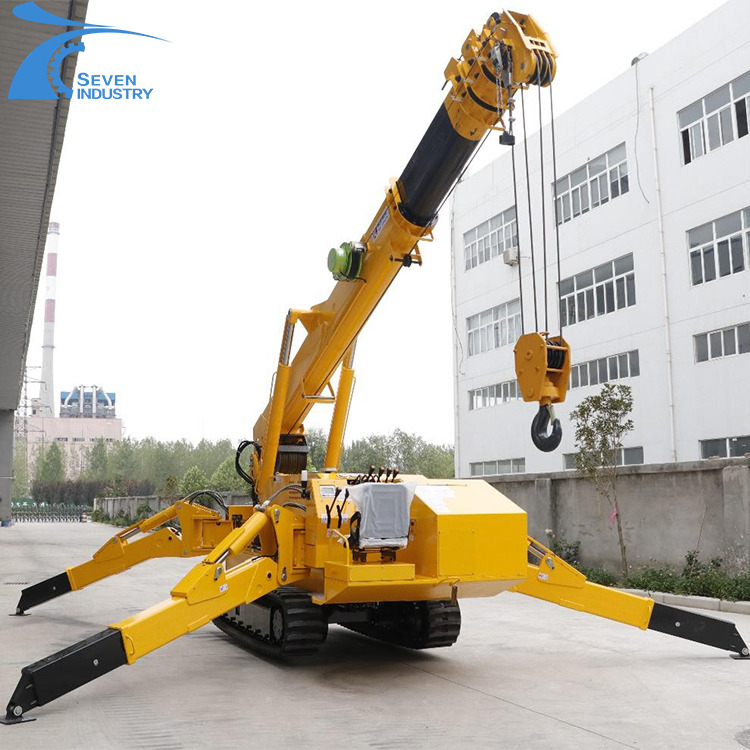

Mini Electric Hydraulic Truck Crane Mobile Crawler Crane expert in narrow space

Mini Spider Crane is commonly employed in the transport industry for the loading and unloading of freight, in the construction industry for the movement of materials and in the manufacturing industry for the assembling of heavy equipment. It can be used in installing glass curtain wall, petrochemical pipes, railway construction, machine inspection and maintenance in workshop, electric power construction or municipal construction. Its application in Shanghai world expo is the best description of our quality and reputation.

♦Strong passing; Small weight and narrow body, especially suitable for indoor or confined places.
♦Good safety performance; the basic configuration has weight limiter.
♦High automation; Adopt joystick operation in multiple use while choose remote control, greatly

improving lifting efficiency.
♦High technology; hydraulic systems in many places been used, guaranteeing the stability of lifting.
♦A quality product, which complies with CE regulations, export Europeen, Brazil etc.
♦Competitive pricing
♦After-care sales and service support
♦Product familiarization and service training for customers.
♦12 months parts & labor warranty
♦Parts availability ex stock China
♦Sales literature, where feasible, in the local language

components

Spider Crane-SS5.0

Winding device:

1. Hook up speed: 8 m/min (growth 16 m/min) 6 on the rope

2. Steel wire rope: Diameter of 9.3 mm * 92 m

Telescopic device:

1. Crane jib form: 5 Angle automatic segment

2. Crane arm length: 4.7m-16.5m

3. Telescopic crane boom length/time: 11.7m / 54sec

Rolling device:

Boom Angle/time: 0°-80°/ 24.5sec

Rotary device:

Turning Angle/time: 0 ° ~ 360 ° continuous / 2.1 RPM (growth rate of 2.5 RPM)

Leg:

1.Leg action form: Manual rotation, oil pressure, oil pressure grounding

2.Maximum out of range: 5670mm*5510m*5030mm

Walking device:

1.Walk way: Hydraulic motor drive, two pieces of stepless variable speed

2.Walking speed: 0-2.5Km / h

3. Climbing ability: 20 °

4. Crane earthing length * width * 2: 1720mm*320mm*2

5. Ground pressure: 35.6kpa(0.356kgf / cm2)

The motor:

1.The power supply voltage: The standard AC380V

2.Power: 7.5KW

The engine:

1.model: 3TNV88-PFN(YANMAR)

2.displacement: 1.642L

3. Maximum output power: 21.2KW/2400min-1

4. Start the way: Electric start

5. Startup performance: -5°C-40°C

6. Use fuel/volume: Diesel / 45 l

7. Battery capacity: 12V90AH

Safety device: Level, alarm device, abrupt stop button, torque limiter and trichromatic lamp

System voltage: DC12V

The vehicle size:

Length * width * height: 4950mm*1560mm*2235mm

The weight of the:
The vehicle weight: 6000Kg

PRODUCT SCHEMATIC

Sevencrane (Henan Seven industry Co., Ltd) offers our customers with reliable, safe and high-performance solutions for industrial cranes, crane components and drives.

We stands for first-rate service, cost-effective, high quality.

Our factory covers an area of 4500 square meters, staff 1700 people, Company can independently accomplish research, development, manufacture, installation, sales and service of crane products ,for instance hoist, overhead crane ,gantry crane ,jib crane and other products, Many of our products has been widely used in metallurgy, electric power, petrochemical, military industry, mine, aerospace, construction, railway and other national economic pillar industries, products are exported to Europe ,Africa, Southeast Asia, south America and other regions.

Tell SEVENCRANE your needs and leave the rest to us.

Sevencrane is committed to the highest efficiency, best results and excellent service, choose SEVENCRANE to give you peace of mind.

Our slogan: 1. First class service

2. Safe

3. Efficient

4. Reliable

Company name: SEVENCRANE (Henan Seven Industry Co., Ltd)

Address: Huida xintiandi, qilihe north road, Zhengdong new district, Zhengzhou city, Henan province, China.

Products: Overhead cranes, Gantry cranes, JIB crane, Hoist, Winch, Work Platform, Crane parts

And we treat our customer extreme sincerely. We will be extreme glad to makes friends with you from all over the world and also hope to establish long-term better cooperation relationship with you.
